Capacitive Sensors for Displacement, Distance and Position
Micro-Epsilon : Catalog capaNCDT-Sensors

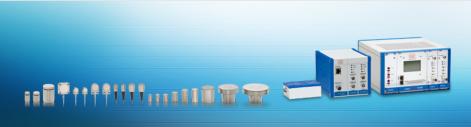

Micro-Epsilon Capacitive Sensors are available in different Designs and Versions depending on
Measuring Range and Technology used their Manufacturing.
The Sensors are available in cylindrical Design (with integrated Cable or Socket) or as
Flat Sensors (with integreted Cable).
Replacing a Sensor is easy and it can be executed within short Time and doesn’t require any
Recalibration.
Most of Sensors can be used in clean Rooms and in Ultra-High Vakuums.
All capaNCDT sensors, cables and controllers are fully compatible.
Micro-Epsilon Capacitive Sensors are designed for Non-Contact Measurement of
Displacement, Distance and Position as well as for Thickness Measurement.
Due to their High Signal Stability and Measuring Resolution, The Capacitive Sensors
are applied in Laboratories- and Industrial Measurements.
In Production Control, for example, Capacitive Sensors can accurately measure Film-- or
Coating Thickness and when installed in Machines they can monitor Displacement and Tool
Positions.
Type Measuring Ranges Resolution Linearity
capaNCDT 6110
Compact Capacitive System 0.05 - 10 mm 0.01 % FSO +/-0.05 % FSO
capaNCDT 6200
Modular Multi-Channel System 0.05 - 10 mm 0.0005 % FSO +/- 0.025 % FSO
for Highest Precision
capaNCDT 6500
Capacitive Multi-Channel System 0.05 - 10 mm 0.00008 % FSO +/- 0.025 % FSO
for Maximum Resolution
combiSENSOR
One-Sided Thickness Sensor
capaNCDT DTV
Measuring Disc Thickness Variation
FSO : Full Scale Output
