Draw-Wire Displacement Sensors
Micro-Epsilon : Catalog Draw-Wire Sensors
Micro-Epsilon Draw-Wire Sensors measure almost linearly across the entire measuring Range
and are used for Distance and Position Measurement of 50 mm up to 50.000 mm.
The Sensors are ideal for Integration in OEM-Applications for medical Devices, Lifts,
Conveyors, automotive Engineering etc.
Product Characteristics :
- Measurements of Displacement, Distance and Position, Range up to 50.000 mm
- Suitable for difficult-to-access Positions
- Measuring Resolution towards Infinity
- Easy, fast and flexible Mounting
- Compact Sensor Housing combined with large measuring Range
- High operational Safety and long Service Life
- Analog and Digital Outputs available

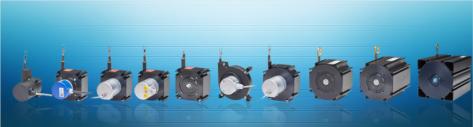

Micro-Epsilon : Draw-Wire Sensor Family
Compact and Robust Design :
Different Sensor Series cover nummerous Tasks in different Industries.
Reliable Operation and Long Service Life :
Draw-Wire Displacement Sensors measure linear Movements using
a highly flexible Steel Wire. The Cable Drum is attached to a Sensor
Element which provides a Displacement-proportional Output-Signal.
Measureents are performed with high Accuracy and high dynamic
Response.
Telescopic Measuring Principle suitable for
Difficult-to-Access Places : A Distinguishing Property of
‘telescopic Principle’ is that measuring Cable can be diverted over
deflections pulleys. That differentiates Draw-Wire Sensors from other
Principles which normally only measure on one Axis.
