Magneto-Inductive Distance-, Speed Maesurement (mainSENSOR)
Micro-Epsilon : Catalog mainSENSORS
mainSensor is based on an innovative measuring Principle, developed by Micro-Epsilon,
combining the advantages of both inductive and magnetic Sensors.
Magneto-Inductive Sensors are frequetly used in Process Automation, in packaging Industry
and in Machine Monitoring.
Working Principle: measuring the Distance to a Magnet, that is fixed on the Object, the
Sensor delivers a continuous linear Output-Signal. Applying Magnets of different Strenght
measuring Ranges between 20 - 55 mm can be achieved. and
.In Order to adapt the measuring Range a simple Magnet changing is necessary.
Product Characteristics :
- Linear Output Signal, High Sensitivity and Temperature Stability

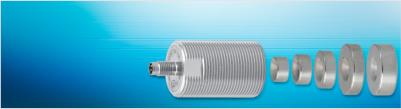

- Selectable measuring Ranges with different Magnets
- Long Life Sensors, Non-Contact Measurement
Micro-Epsilon : mainSensor Gruppe
Measuring through Objects :
Unlike conventional measuring Methods, the magneto-inductive
iSensors enable Measurements through NON-FERROMAGNETIC
Materials e.g. Aluminium or Stainless Steel. A clear Benefit is
provided here as Sensor and Magnet can be mounted separately
in Applications with closed Systems or Housings, allowing safe
Sensor Insallation in harsh Enviroments.
Speed Measurement (Revolutions) :
mainSENSOR is used for rotational Speed Measurement.
Task can easily get performed by attaching one or two Magnets
on the rotating measuring Object. Regardless the Direction of
the Rotation the Sensor measures the Speed of the Target.
